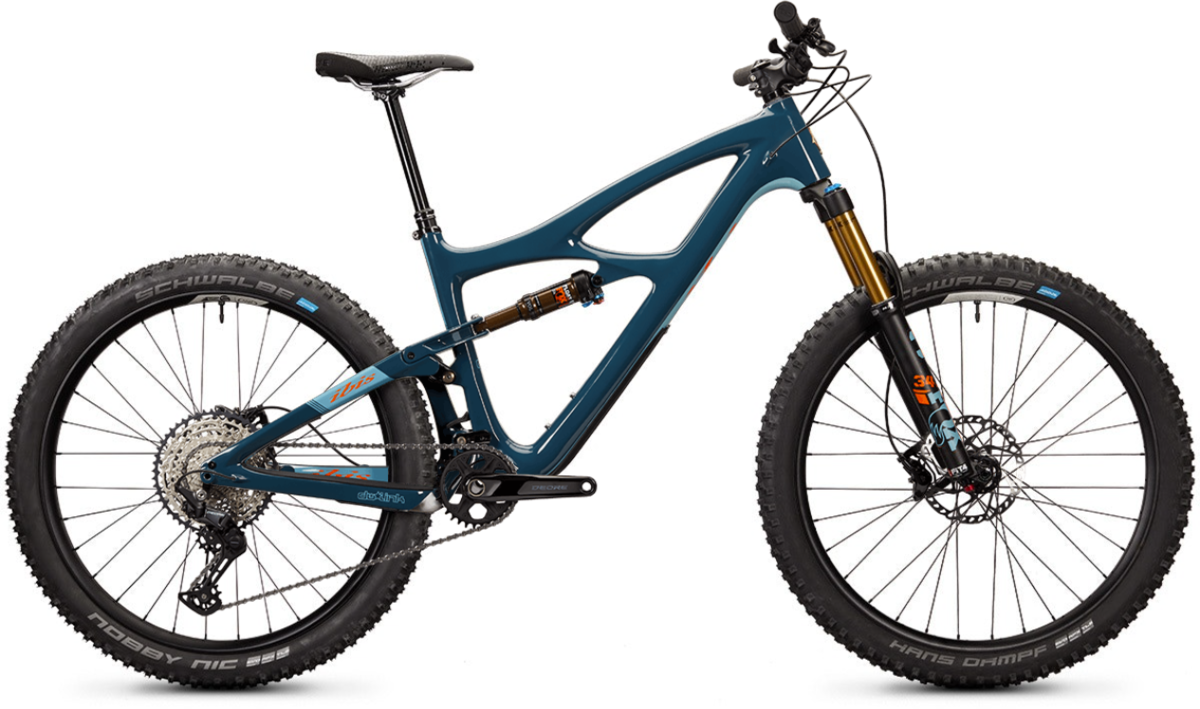

Ibis Mojo V4 Deore

Ibis Mojo V4 Deore
  • Color: Blue Dream
  • Color: Dirty White Board
$5,099.00 - $6,499.00
Please select options


The word Mojo refers to a magic spell or charm, and more broadly-a magical power. Since its introduction in 1994, the Mojo has delivered a wicked combination of fun and all-mountain prowess.

The Mojo V4 features a 76.6-degree, get-you-up-that-hill seat tube angle, our shortest chainstays, and a spacious reach with a 65.4-degree headtube angle. This enchanting combination rolls on 27.5" wheels, to deliver that hoverbike feel with on-trail confidence.

Since 2005, we've partnered with suspension guru Dave Weagle on the dw-link suspension platform. It provides an unparalleled combination of climbing efficiency and downhill performance, which has been proven repeatedly at the highest levels of racing.

Traction Tune
Our custom-tuned suspension features extra light high-speed compression and rebound damping to deliver unparalleled traction. When paired with our dw-link suspension platform, Traction Tune allows the Mojo to track like a big bike without compromising crisp pedaling performance.

Pick Your Size
All four sizes have low standover heights and shortened seat tubes for long dropper posts. Now you can choose your frame based on reach?-?riders 5-feet tall easily fit on a small and still enjoy a 125mm dropper, while most medium and up riders can enjoy a 185mm. All sizes fit a water bottle, and those looking to go packless can run our aftermarket Pork Chop bag.

Fork Offset
Reduced-offset forks give the front wheel greater stability at speed and an additional sense of steadiness at slow speeds too. The Mojo is designed to excel in technical, demanding terrain, and the 37mm-offset gives that extra bit of confidence and control in the most challenging situations.

Tire Clearance
The Mojo has clearance for 27.5"x2.6" tires. You can run overbuilt, chunky tires; you can run light, big volume fast tires, but whatever you run, know that you're not limited by width.

Tired of hitting ?"purchase" on another set of bearings each season? So were we. That's why we use bushings where they make sense, and bearings where they don't. The IGUS bushings in our lower link are lighter and stiffer than bearings, and virtually maintenance free. We believe so strongly in them, we back them with a free lifetime replacement.

Lightweight Premium Carbon For Everyone
All our bikes are built from the highest grade materials and optimized for the best strength, weight, stiffness, and ride performance?-?no matter how much you spend. The Mojo weighs a svelte 5.9 lbs with an inline shock and complete builds start at 26.7 lbs.

Internal Cable Routing
Bikes that look pretty on the outside, should look pretty on the inside. We use carbon fiber tubes molded within each frame. Push the cable in, watch it pop out, a beautiful moment indeed.

Removable ISCG Mount
There if you want it, removable if you don't.

Protect Your Investment
A polycarbonate downtube protector deflects debris, while molded rubber swing arm protectors keep things quiet and clean. And our simple-yet-elegant linkage protectors stop mud and rocks thrown by the tire, keeping your beautiful bike beautiful.

bike frame with labeled dimensions
Bike Sizes:
A. Reach 440mm 460mm 485mm 515mm
B. Stack 586mm 601mm 616mm 630mm
C. Standover 680mm 690mm 720mm 742mm
D. Effective Top Tube 580mm 603mm 632mm 666mm
E. Head Tube Angle 65.4° 65.4° 65.4° 65.4°
F. Head Tube Length 109mm 126mm 142mm 158mm
G. Seat Tube Angle 76.6° 76.6° 76.6° 76.6°
H. Seat Tube Length 360mm 368mm 419mm 470mm
I. Bottom Bracket Height 340mm 340mm 340mm 340mm
L. Trail 123mm 123mm 123mm 123mm
M. Wheelbase 1166mm 1193mm 1225mm 1262mm
O. Chainstay Length 425mm 425mm 425mm 425mm
Small 152–165CM
Medium 163–175CM
Large 173–185CM
X-Large 183–198CM


Frame Mojo 4
Fork Rock Shox Pike Ultimate RC2 140mm, 27.5", 110x15
Rear Shock Fox Float Factory Series, DPS with EVOL, 210 x 50 S/M: Light Tune, L/XL: Standard
Wheels Select from the dropdown above
Tires Front: Schwalbe Hans Dampf 27.5 x 2.6" Addix Soft Super Trail
Rear: Schwalbe Nobby Nic 27.5 x 2.6" Addix Speedgrip Super Trail
Bottom Bracket Shimano SM BB52
Crankset Shimano Deore M6100 24mm spindle, 32t Alloy Ring, S/M: 170mm, M/L: 175mm
Shifters Shimano Deore M6100
Rear Derailleur Shimano Deore M6100 Shadow Plus
Cassette/Freewheel Shimano Deore M6100, 10-51t
Chain Shimano Deore M6100
Brakes Shimano Deore M6120, 4 Piston
Rotors Shimano SM-RT66, 180mm
Handlebars Ibis 780mm Alloy
Tape/Grips Lizard Skin Charger
Stem Ibis 31.8mm S/M: 40mm, L/XL: 50mm
Headset Cane Creek 40 ZS44/ZS56
Seatpost KS Rage-i Dropper S: 125mm, M: 150mm, L/XL: 170mm
Saddle WTB Silverado 142
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Blue Dream / Small / Ibis S35 I9 Carbon 810081721219 0:M4C1BUSDEI935
Blue Dream / Small / Ibis S35 Logo Carbon 810081721226 0:M4C1BUSDELG35
Blue Dream / Small / Ibis S35 Aluminum 810081721202 0:M4C1BUSDEAL35
Blue Dream / Medium / Ibis S35 Aluminum 810081721523 0:M4C2BUSDEAL35 210000033118
Blue Dream / Medium / Ibis S35 I9 Carbon 810081721530 0:M4C2BUSDEI935
Blue Dream / Medium / Ibis S35 Logo Carbon 810081721547 0:M4C2BUSDELG35
Blue Dream / Large / Ibis S35 Aluminum 810081721844 0:M4C3BUSDEAL35
Blue Dream / Large / Ibis S35 I9 Carbon 810081721851 0:M4C3BUSDEI935
Blue Dream / Large / Ibis S35 Logo Carbon 810081721868 0:M4C3BUSDELG35
Blue Dream / X-Large / Ibis S35 I9 Carbon 810081722179 0:M4C4BUSDEI935
Blue Dream / X-Large / Ibis S35 Logo Carbon 810081722186 0:M4C4BUSDELG35
Blue Dream / X-Large / Ibis S35 Aluminum 810081722162 0:M4C4BUSDEAL35
Dirty White Board / Medium / Ibis S35 Logo Carbon 810081721707 0:M4C2GYSDELG35
Dirty White Board / Large / Ibis S35 Logo Carbon 810081722025 0:M4C3GYSDELG35
Dirty White Board / Small / Ibis S35 I9 Carbon 810081721370 0:M4C1GYSDEI935
Dirty White Board / Small / Ibis S35 Logo Carbon 810081721387 0:M4C1GYSDELG35
Dirty White Board / Small / Ibis S35 Aluminum 810081721363 0:M4C1GYSDEAL35
Dirty White Board / Medium / Ibis S35 Aluminum 810081721684 0:M4C2GYSDEAL35
Dirty White Board / Medium / Ibis S35 I9 Carbon 810081721691 0:M4C2GYSDEI935
Dirty White Board / Large / Ibis S35 Aluminum 810081722001 0:M4C3GYSDEAL35
Dirty White Board / Large / Ibis S35 I9 Carbon 810081722018 0:M4C3GYSDEI935
Dirty White Board / X-Large / Ibis S35 I9 Carbon 810081722339 0:M4C4GYSDEI935
Dirty White Board / X-Large / Ibis S35 Logo Carbon 810081722346 0:M4C4GYSDELG35
Dirty White Board / X-Large / Ibis S35 Aluminum 810081722322 0:M4C4GYSDEAL35
